CinemAll: improving the in-theater experience for visually Impaired moviegoers




The Problem

Audio and video work together to create immersive cinematic experiences. When one piece is missing, it can degrade the integrity of the whole movie. Unfortunately, this is the reality for people with visual impairments. *

While an ADA law enacted in January 2017 requires movie theaters to provide video description devices for their patrons with disabilities, the technology is still lacking. Visually impaired moviegoers have to rely on clunky, uncomfortable, and often complex devices (shown below).

In an age when IMAX, Real 3D, CGI, VFX and other new technologies in movie theaters are prospering, and theaters are focusing on providing experiences beyond the movie itself (such as dine-in and bar services) why is it that users with visual impairments are often being forgotten?

*For the purposes of our research we define the visually impaired  as those users who have moderate to severe visual impairment (Snellen visual acuity:  20/70 to 20/400 range)1 , possibly extending to profoundly visually impaired users that fall  into the 20/500 - 20/1000 range. More precisely, this user group is defined as  moviegoers or potential moviegoers who prefer to use a descriptive video devices when visiting a  movie theater.




Research

We conducted 3 semi-structured interviews with the help of the Center for Visually Impaired (CVI) in Atlanta, as well as a physical walkthrough where one of our team members went to a theater and watched a movie using a descriptive video device. We also conducted literature review and dived into the online blind community by visiting government websites, existing solutions and user reviews of them, and online message boards such as reddit.com/r/blind.

The following themes emerged:

  • Renting a Descriptive Video Device can be an intrusive experience for the users

  • Staff is poorly trained on the difference between different assistive devices

  • ADA requires most movies to be Descriptive Video Device compliant, yet that's not always the case

  • It can be hard to find Descriptive Video Device information on theater's websites

  • Users had to arrive earlier & leave later compared to other patrons

  • Users arrived to movie theater's only to find no Descriptive Video devices available

  • Many DV devices don't function properly even within their designated range

  • Devices are often dirty, incompatible with personal headsets, or simply don’t work

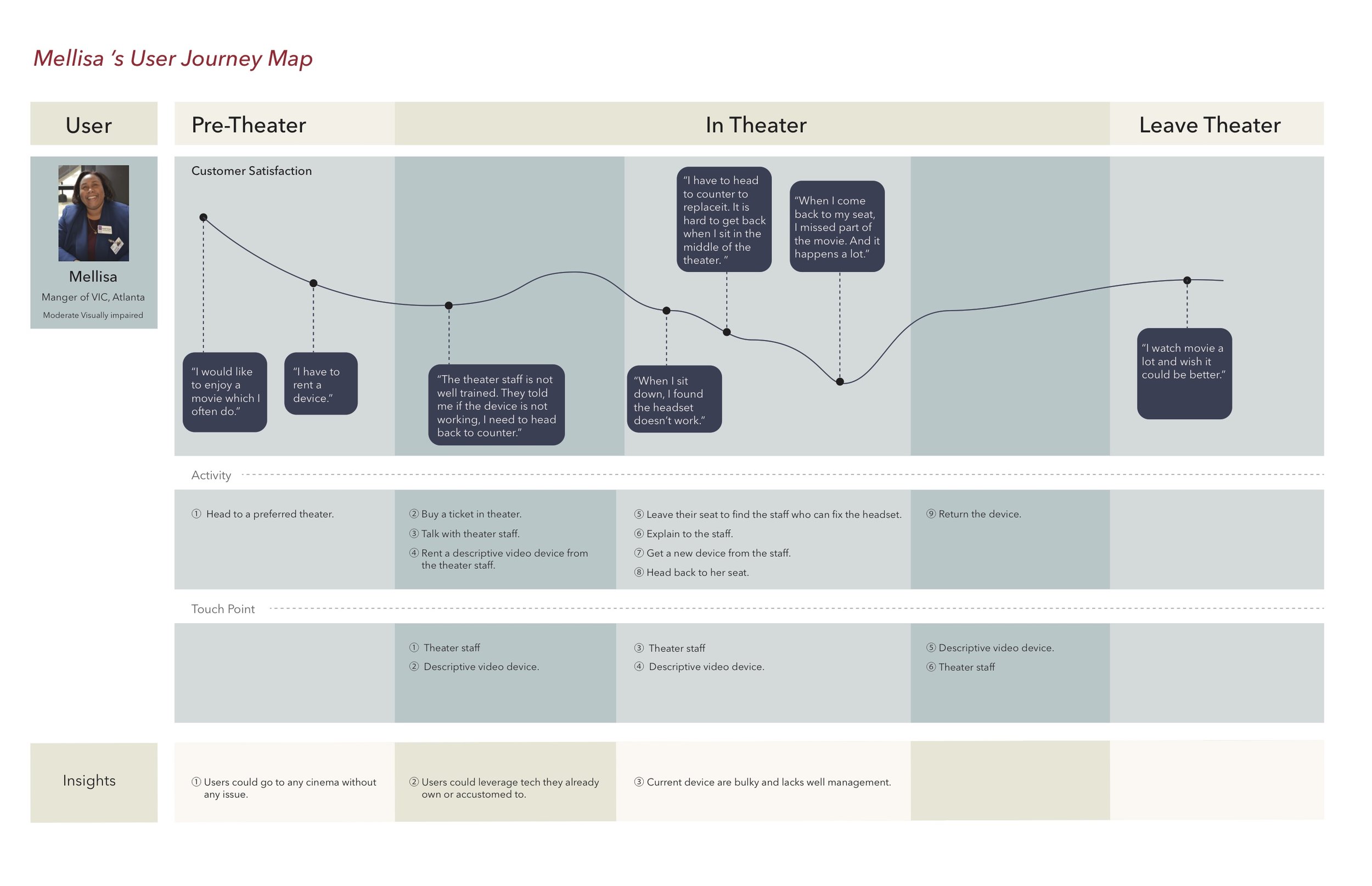

We conducted a task analysis and using that, as well as the themes from above, we created user journey maps to visualize the user’s path in acquiring a Descriptive Video device, as well as the pain points and decisions met along the way:




synthesis & Defining our user Needs

We gathered all the information from our research and conducted an affinity mapping session to visualize, categorize, and prioritize user needs.

The following needs were identified:

  1. “I want to be prepared when I visit a movie theater”

  2. “I have difficulty acquiring the appropriate disability device when visiting a theater.”

  3. “I’m not sure what to do when my descriptive video device malfunctions.”

our affinity diagram

our affinity diagram




ideation

Now that we had defined the problem and identified the user needs, we still needed to decide what to build and why to build it.

We sat down in an informed brainstorming session and collectively, we came up with over 60 ideas ranging from simple and easily implementable to outlandishly complex. The goal was to tap into our most creative ideas by exhausting as many  options as possible. We then narrowed our scope by creating a Feasibility vs. Impact Chart. We chose this method so that we could find a solution that could both maximize benefits for the user, while keeping comfortable for providers in the hopes of encouraging them to adopt the solution.

We narrowed down our design ideas to the three following design alternative ideas:

  1. Smart Kiosk:
    A kiosk that can automatically dispense the correct assistive video technology, while limiting interaction with undertrained staff.

  1. Mobile App Leveraging Existing Descriptive Devices:
    A mobile add, or addition to existing theater applications, that allows users to request accessibility devices prior to arriving to the theater, saving them time.

  2. In-theater Audio Streaming App:
    An app that automatically syncs the descriptive audio from the movie directly to the user’s phone, eliminating the need of clunky devices, cutting out interaction with undertrained staff, and saving time at the theater.

After creating low-fi paper prototypes of our design alternatives, we demoed these to both our classmates as well as experts at the Center for the Visually Impaired (CVI) in Atlanta, who reassured us that smartphones with screen-reading functionality is used often by the visually impaired.

We decided to move ahead with idea #3 — the in theater Audio Streaming App.

How we envisioned the user flow of our application




prototyping

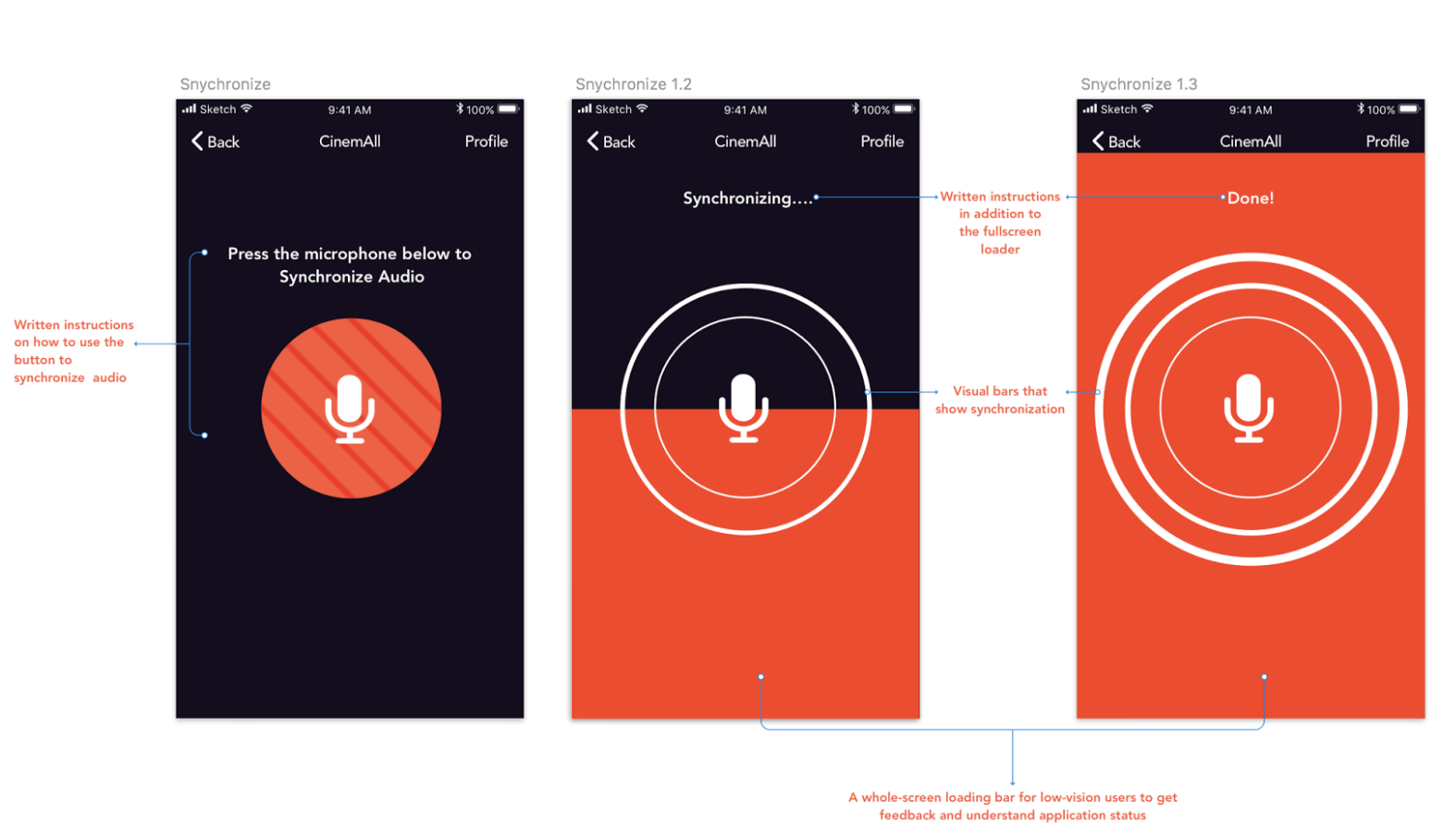

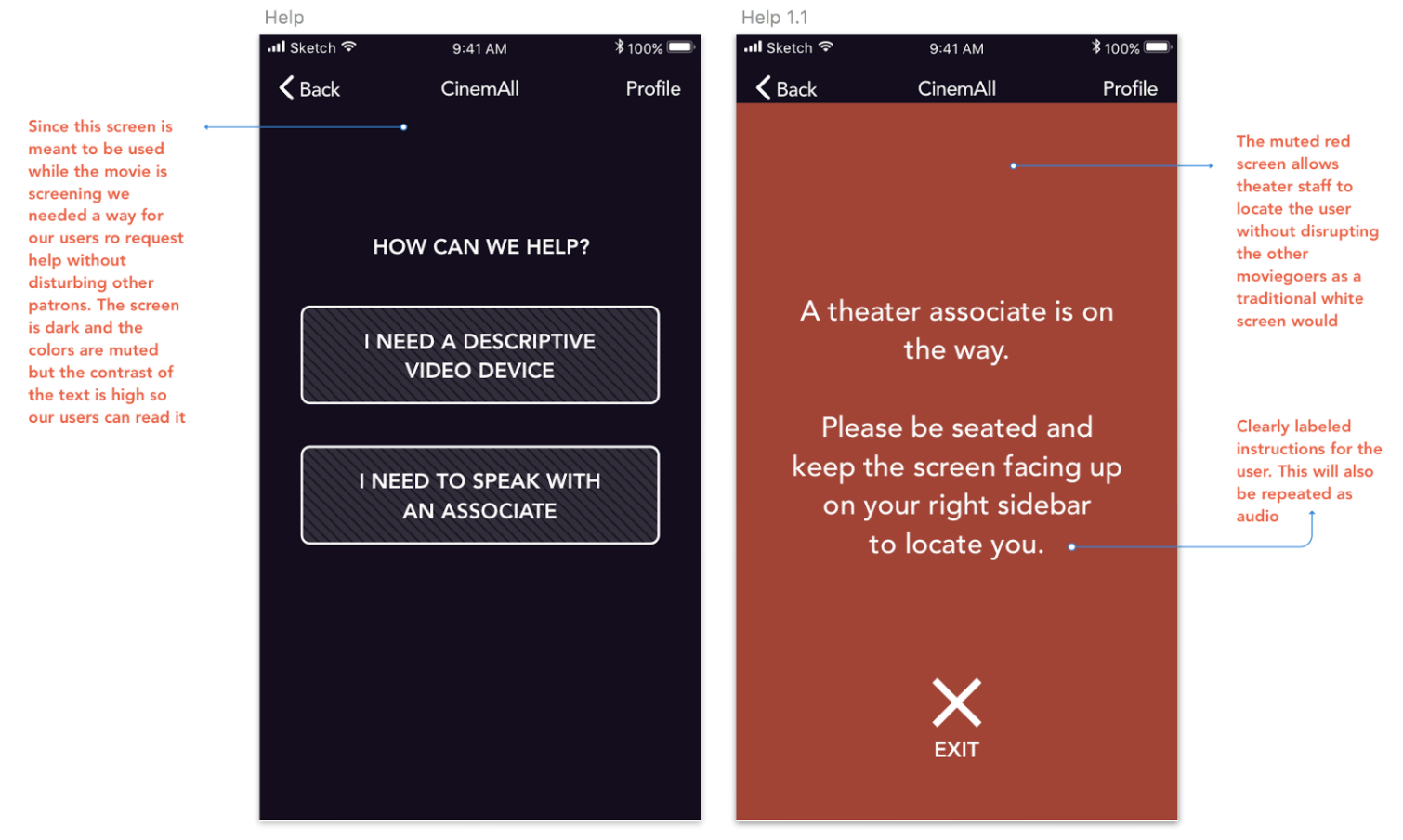

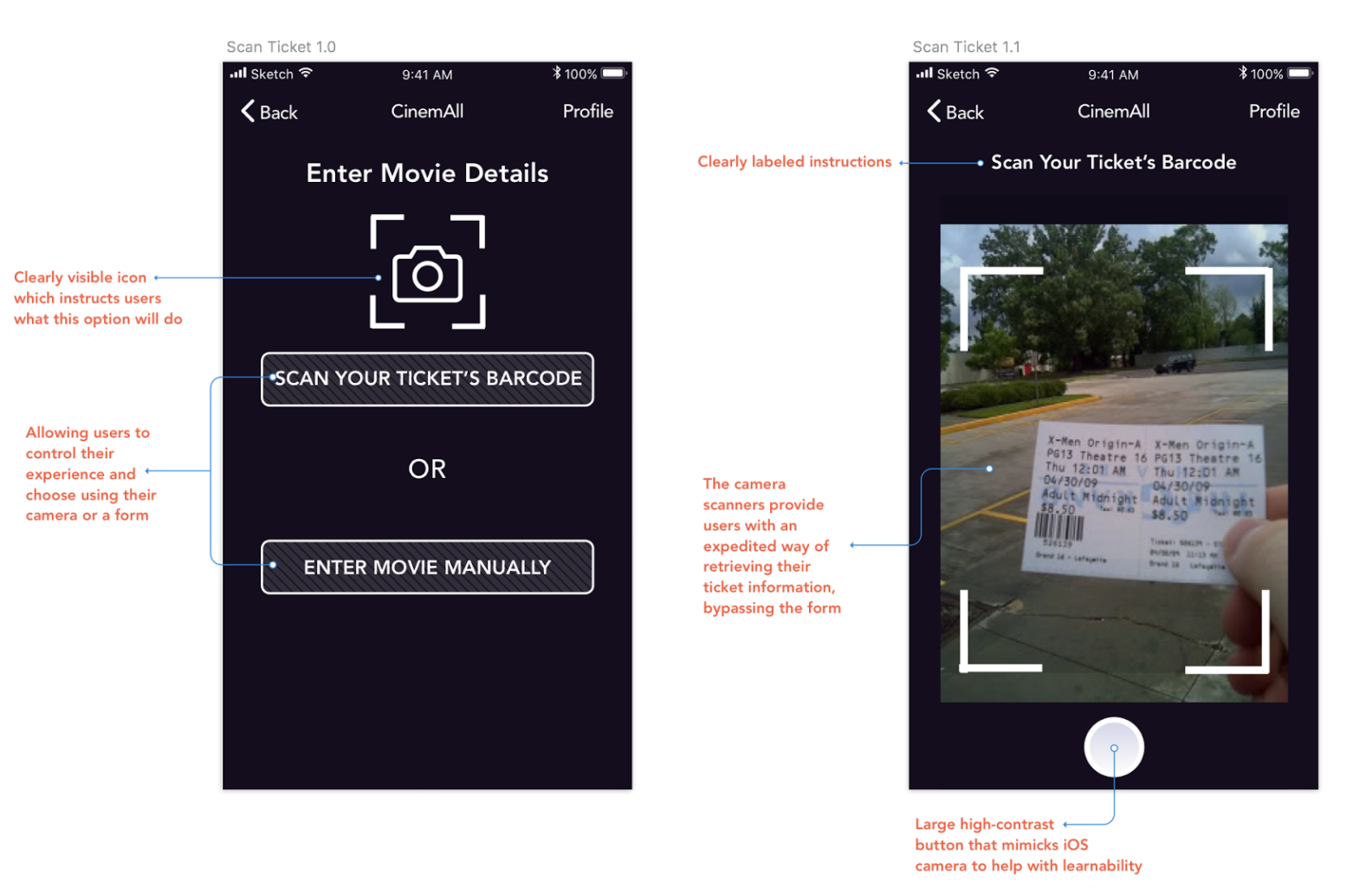

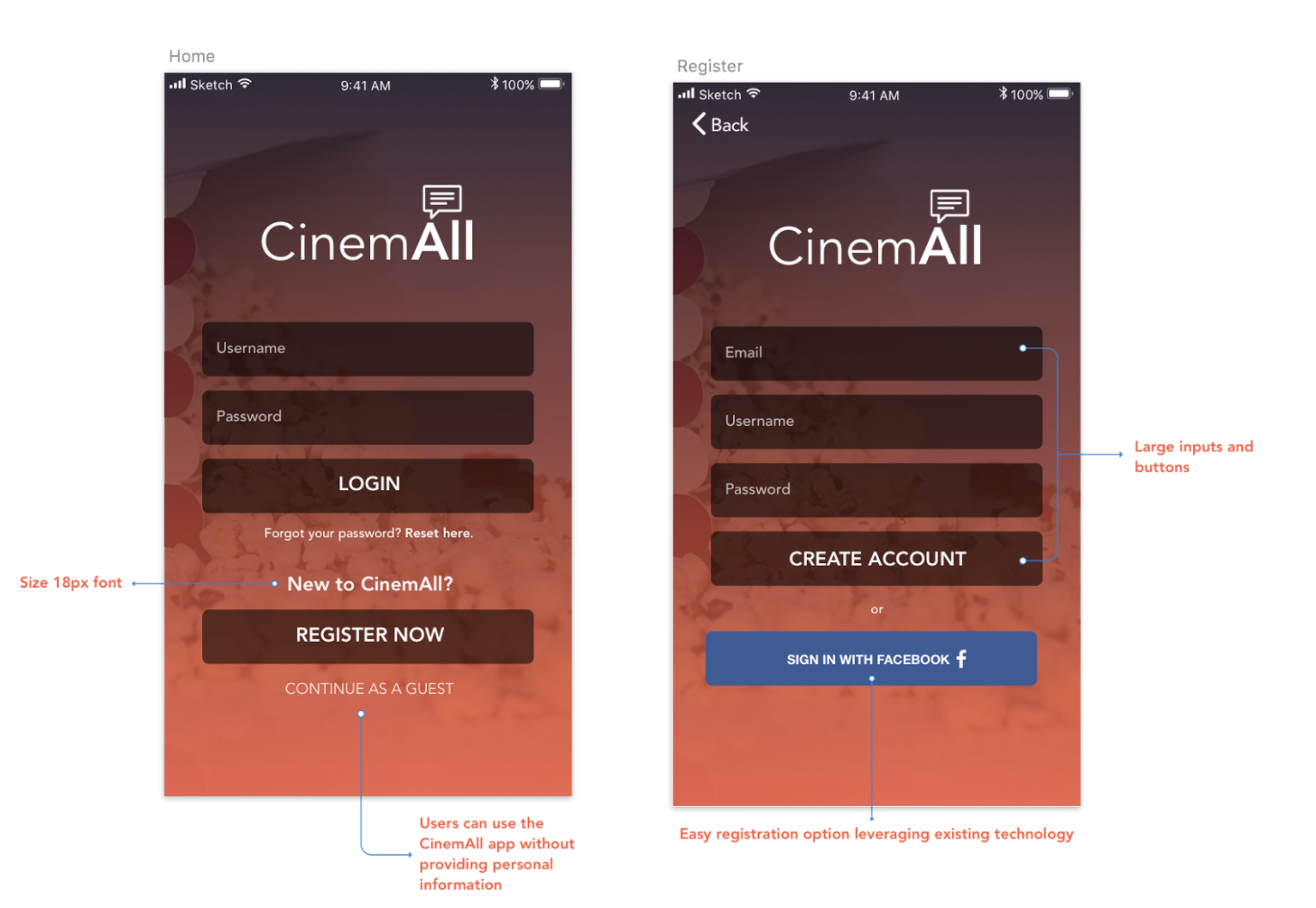

First we had to choose the fidelity of the prototype. We needed the fidelity to be high enough, that users could get feedback from the interactive elements. We also had to constantly keep in mind that we were designing for a special population. This would come to affect everything from the colors we used, to the font size, and everything in between.

Choosing Colors & Contrast:
Because our users are visually impaired, we did some preliminary testing to confirm that our colors and contrasts meet widely-accepted guidelines. We used the WebAIM web app to check our contrast ratios. We considered a 4.5:1 contrast ratio as passing based off of the W3 recommendations for accessibility. Red was used because it has the longest wavelength, and provides the least stress on the eye when switching between it and dark contexts. Additionally, we made sure to add patterned backgrounds to all clickable elements to double-encode the information so that users with poor color perception can easily distinguish different elements on the screens. Lastly, we made the text and buttons large to allow for user error when aiming, which might be more common among our users.

Contrast Ratios

Contrast Ratios




usability testing & evaluation

Unfortunately, by this point we had exhausted our resources at the Center for the Visually impaired, so we had to get a bit creative with our user testing. We had users with otherwise normal vision use our prototype while wearing vision impairing glasses.


Measuring Success
We used a combination of SUS Scales, Post-Task Questionnaire, and Benchmark Tasks to measure our app’s usability. Below is our user feedback overlayed on our user flow chart.




Takeaways & lessons learned

  • When we embarked on this project, we were excited to design for a population we were unfamiliar with. We saw it as a challenge and knew we had to rigorously follow the design process in order to make sure we kept the best interests of these users in mind. However, designing for this population proved to be a challenge on multiple occasions.

  • Design proved difficult and tedious because we had to be meticulous along every step of the way that our system met accessibility standards for various types of visual impairments.

  • There aren't many prototyping tools that take accessibility into account

  • We should have leveraged more participatory design methods allowing the users to have been part of the process during every step of the way, not just in the interview and evaluation phases. It might take more time to design this way, but would be a better way to approach this particular situation.





project details

role:
UX Design
UX Research
Report Writing

timeline:
Aug ‘17 - Dec ‘17

team:
Yingxiao Ouyang
Ruturaj Eksambekar
Christa Peet

2018 Update

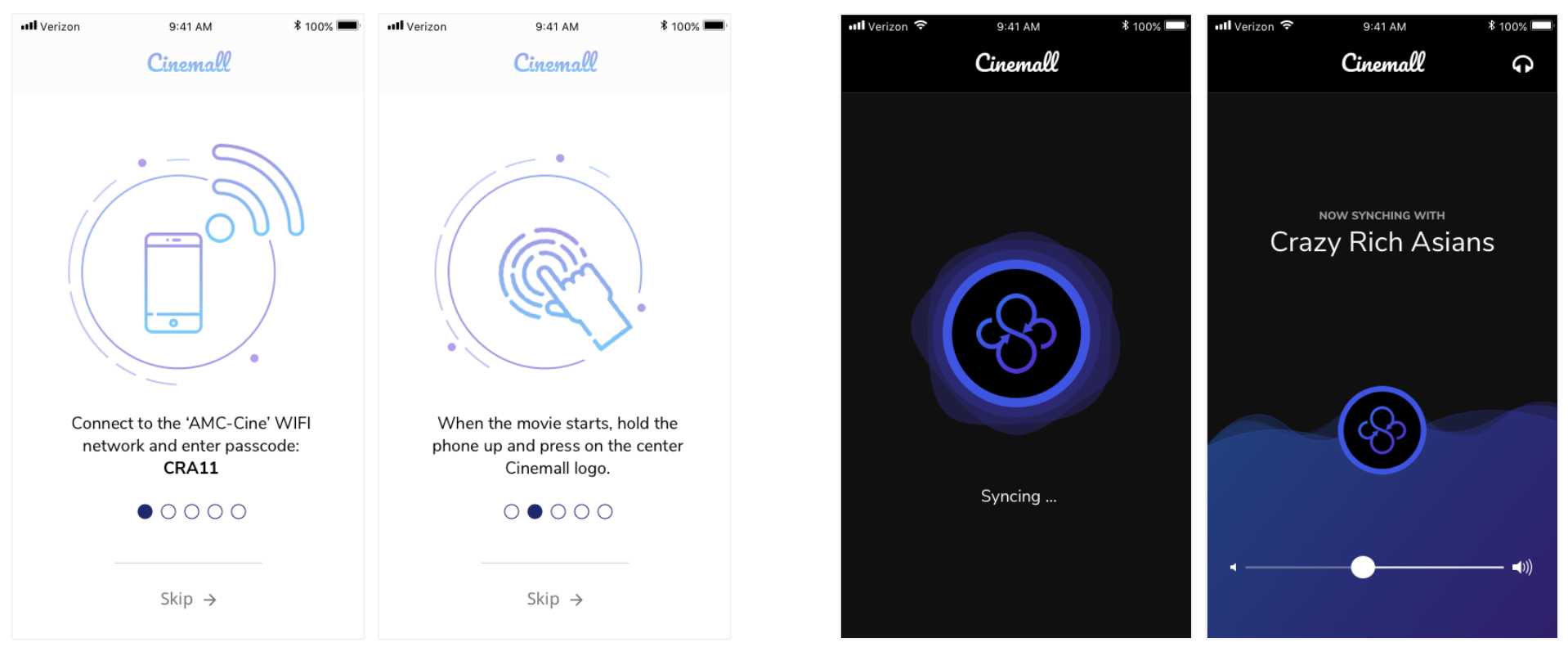

Although the semester was over, I felt there was still more that could be done on this project from a UI level. I decided to try my hand at a refresh. Here is what I came up with:
